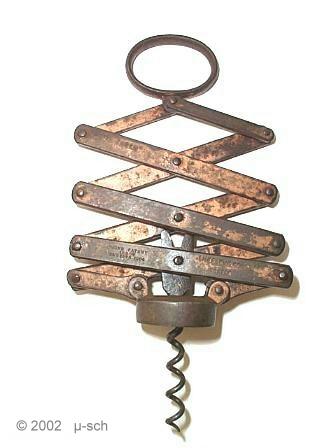

Marshall Arthur Wier of Upper Norwood, Surrey, England, invented the compound levers.

This bronzed concertina corkscrew is exactly according to Wier's English patent design

No. 12 804 from Sept. 25, 1884.

Manufactured by

James Heeley & Sons Ltd., Birmingham.

material: bronzed steel

markings:
PATENT
Weir's Patent, 12804 25. Septr. 1884
J.HEELEY & SONS, Makers

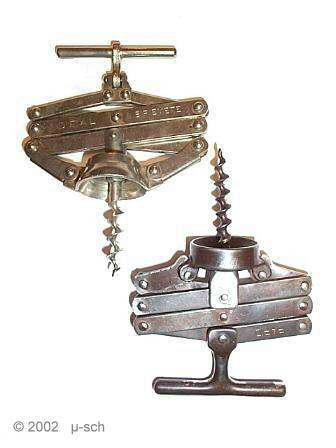

Two other lazy tongs, often called concertina or compound lever

material: nickelplated steel

marking:
left: IDEAL Brevete

right: RAPID

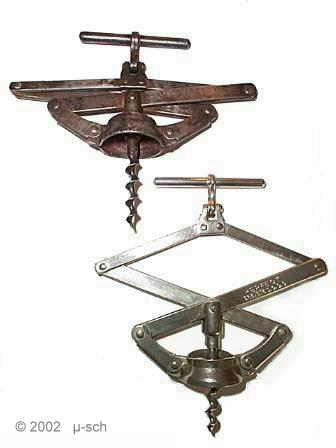

2 french Lazy Tongs made by

Ph. and E. Martenet.

(patent design not found)

origin: France

material: steel

the right one is nickel plated

markings:
both: PERFECT Brevete S.G.D.G.

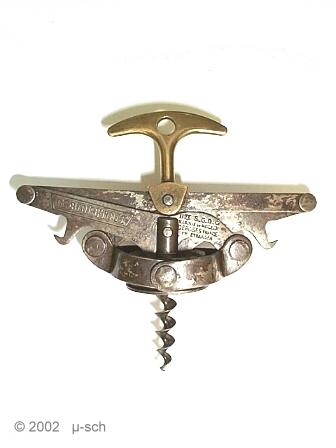

This corkscrews works like all the others with the lever- or concertina mechanism. Additionally there are 2 hooks for caplifting on the bottom segments.

Made by Ateliers J. Bart, Nancy, France

Patent not found

material: steel, brass

markings:
DÉBOUCHTOUT
BTE S.G.D.G.
MARQUE et MODELE
DEPOSE FRANCE et ETRANGER

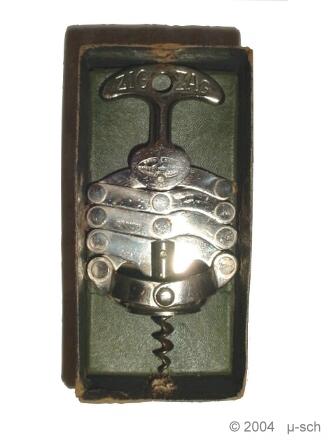

French ZIG ZAG lazy tong with concertina mechanism, spring support and cap lifter.

It was patented by

Marie Jules Leon Joseph Bart, Nancy, France

February 17, 1928

french Patent No 649 209.

material: steel, brass

markings:
Brevete S.D.G.D.
Marque et modelle deposes, France et etranger


Older Version of the French ZIG ZAG lazy tong with concertina mechanism, but without caplifter.

It was also patented by

Marie Jules Leon Joseph Bart, Nancy, France

September 17, 1919

french Patent No 503 957.

material: steel, brass

markings:
Brevete S.D.G.D.
Marque et modelle deposes, France et etranger

new

French ZIG ZAG lazy tong with concertina mechanism, spring support and cap lifter.

It was patented by

Marie Jules Leon Joseph Bart, Nancy, France

February 17, 1928

french Patent No 649 209.

material: steel, brass

markings:
STROBEL
Spezial Nähmaschinen-Fabrik München-12
Gegr. 1883


(Sewing machine manufacturer...)

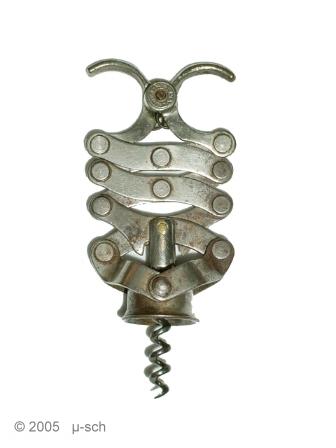

This is a corkscrew, mechanically almost identical to Bart's patent.

French Patent No. 723 604
for Jean Thomas, September 7, 1931

material: steel

marking:
KIS PLY PARIS
BREVETE DEPOSE

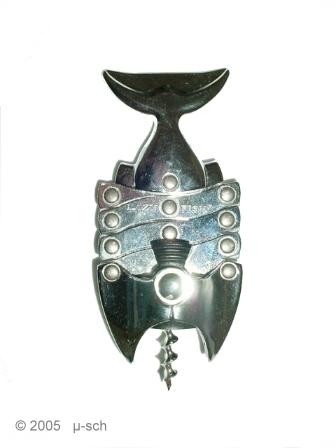

This is a new, modern version of the above described corkscrews in a fish shape.

origin: England

Design Patent
M9304954.4
August 25, 1993

for Reality Products Ltd., Birmingham

material: chromeplated steel, plastic

marking:
LAZY FISH
Made in England


French concertina corkscrew


Manufactured by

Charles and Marcel Martinaud, France

material: steel, bronze

marking:
YPRIM
Depose
Acier France CM
